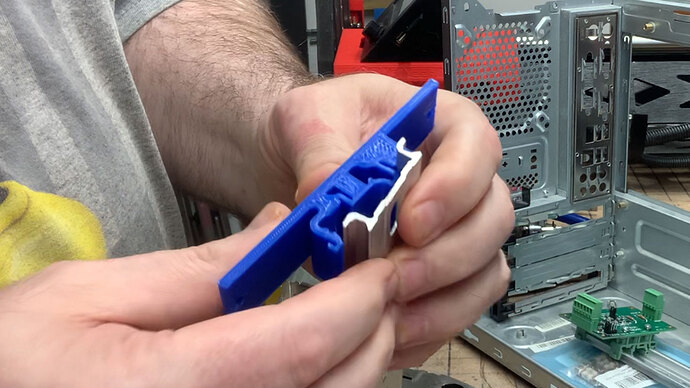

(Option 1 of 2) DIN Rail Clip-Mounts for TB6600 Microstep Driver (v1.0.5).

Download: Printables

IMG_2621-crop
IMG_2621-crop1472×828 223 KB

IMG_6761
IMG_67611920×2560 483 KB

Screen Shot 2022-11-16 at 12.09.46 AM
Screen Shot 2022-11-16 at 12.09.46 AM2152×1458 283 KB

Screen Shot 2022-11-16 at 12.09.02 AM
Screen Shot 2022-11-16 at 12.09.02 AM2152×1458 234 KB

Screen Shot 2022-11-16 at 12.07.15 AM
Screen Shot 2022-11-16 at 12.07.15 AM1920×1200 148 KB

  • Designed for M4 screws.
  • Print as oriented.
  • Prints with no supports.

My intended use for these is for my LowRider v3 CNC plasma table setup.

Change log:

  • November 16, 2022, 12:29 am (EST): initial posting of v1.0.5.

My PayPal tip jar: https://paypal.me/design8studio

Various LowRider 3 CNC remixes:

View all my models and remixes on Printables:

5 Likes
2

(Option 2 of 2) DIN Rail Clip-Mounts for TB6600 Microstep Driver (v2.0.0 & 2.0.1).

Download: Printables

v2.0.0 - IMG_2626-crop
v2.0.0 - IMG_2626-crop1472×828 177 KB

v2.0.0 (with side holes) 01
v2.0.0 (with side holes) 012152×1458 254 KB

v2.0.0 (with side holes) 02
v2.0.0 (with side holes) 022152×1458 294 KB

v2.0.0 (with side holes) 03
v2.0.0 (with side holes) 031920×1200 155 KB

v2.0.1 (no side holes) 03
v2.0.1 (no side holes) 031920×1200 155 KB

  • Designed for M4 screws.
  • Print as oriented.
  • Prints with no supports.

My intended use for these is for my LowRider v3 CNC plasma table setup.

Note:

This is a remix of a design by Claus Dieners (February 18, 2022) that I found on GrabCad . His design had side holes, the purpose of which I do not know. Removing them from my remix made it print quicker (15 minutes less print time) and used less plastic (less perimeter walling). Since I don’t know the purpose of the side holes I am making two versions available, one with holes (2.0.0) and one without (2.0.1). If you don’t need the side holes, save time and print without them.

Change log:
  • November 17, 2022, 2:20 am (EST): initial posting of v2.0.0 and 2.0.1.

My PayPal tip jar: https://paypal.me/design8studio

Various LowRider 3 CNC remixes:

View all my models and remixes on Printables:
