HALL Switch Endstops LR4

LowRider CNC Hardware Development
13

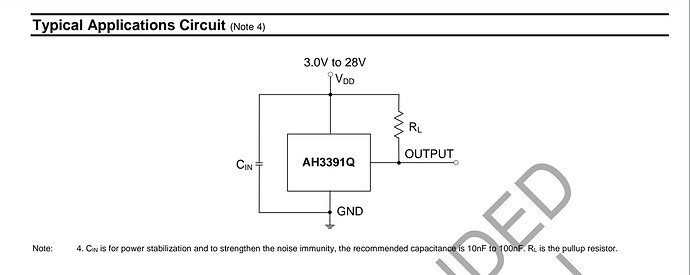

Here is a diagram from the Data Sheet

Screenshot_20251113_060355_Chrome
Screenshot_20251113_060355_Chrome2095×837 110 KB

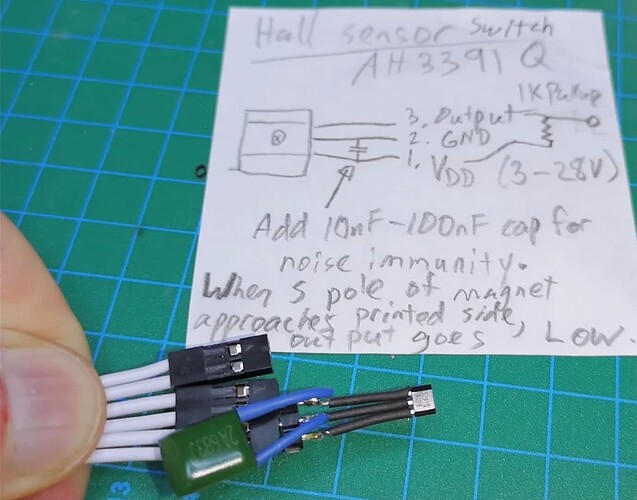

Here is a screenshot from @stevempotter video found https://youtu.be/ztcMPmEYCmw?t=763

Screenshot_20251113_060607_YouTube
Screenshot_20251113_060607_YouTube1376×1079 94.7 KB
